Agent based on AWS Bedrock OpenAI / Error when adding PDF files as binary data

Back to Forums

Sascha Reiser

Question

PDF

ODC

Hey everybody :)

The LLM of OpenAI is hosted on AWS Bedrock and works in general.

I want to build an agent which analyzes a PDF etc.
Therefore, a need to submit the PDFs as binary data (as I think the LLM does not download it from a link).

If I skip adding the files, it's working, so they must be the cause.

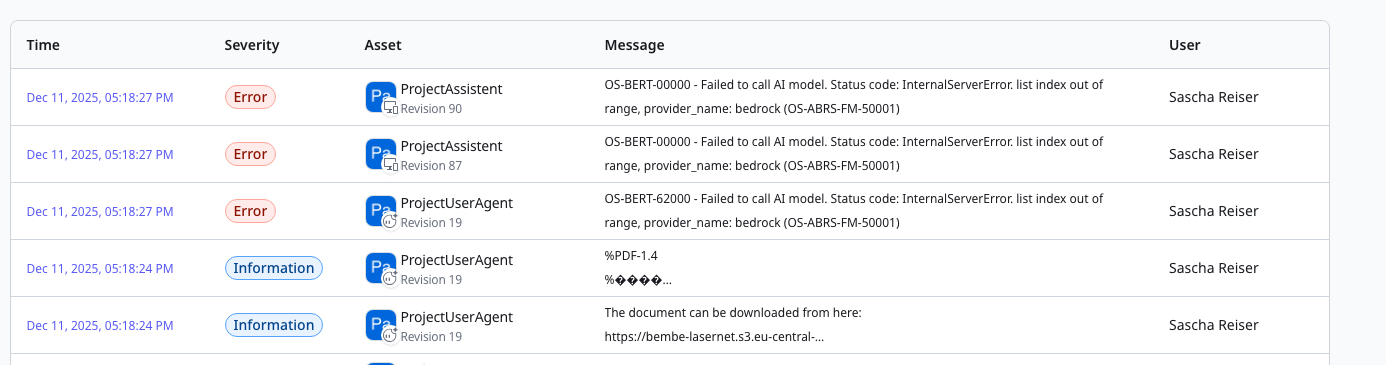

The files itself are valid, I can see it in the log.

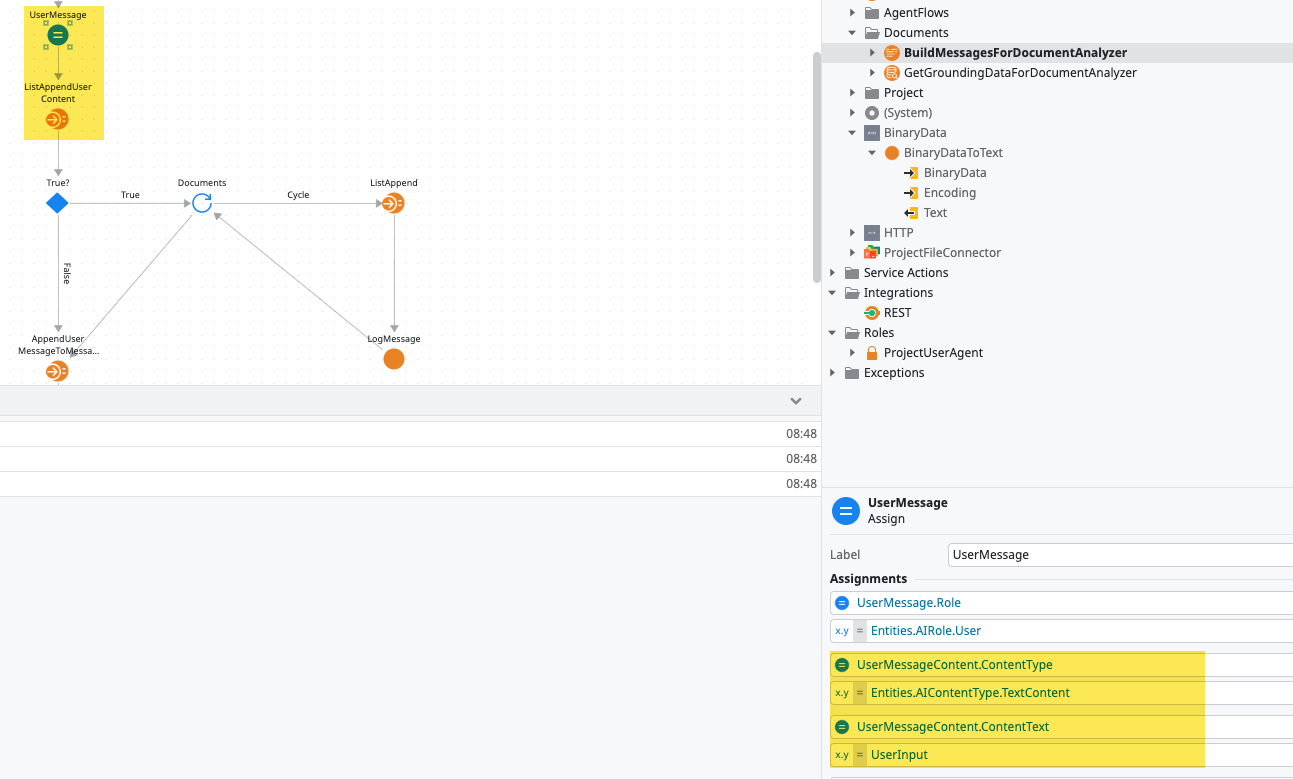

I have adopted it from the training (https://learn.outsystems.com/training/journeys/build-agentic-powered-app-3411/build-the-intake-agent-exercise/odc/10813).

Does somebody know what I am doing wrong ?
Many thanks and best regards,

Sascha

19 hours ago

Shingo Lam

I am also new to this AI part of Outsystems. Let wait for others to reply

8 hours ago

Miguel Verdasca

Hi Sascha,

A couple of things to check, because the error you’re seeing is typical when Bedrock rejects the input payload due to content-type mismatch or unsupported binary format.

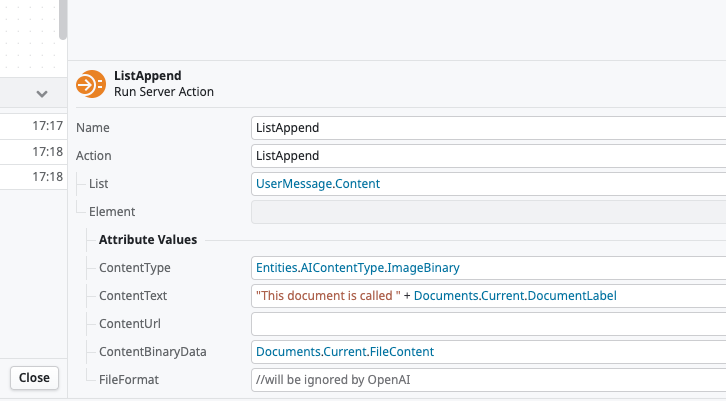

1. Use the correct ContentType for PDFs In your screenshot, the ContentType is set to AIContentType.ImageBinary. For PDFs you must use: Entities.AIContentType.DocumentBinary

If the agent receives a PDF marked as an image, Bedrock will throw parsing errors similar to the ones you’re seeing.

2. Ensure the binary is not null or corrupted Double-check that Documents.Current.FileContent actually contains valid PDF bytes. A quick test is adding a Download link on the screen and verifying you can open the PDF.

3. Add a FileFormat value Even though OpenAI may ignore it, ODC’s validation layer sometimes expects a format: Example: "pdf"

4. Check file size limits Bedrock/OpenAI on ODC currently enforces strict size limits. Try with a very small PDF (≤ 200 KB) just to confirm.

Summary of what to try:

Change ContentType → DocumentBinary
Set FileFormat → "pdf"
Confirm binary is valid and small
Test again

This usually resolves the “index out of range” error you’re getting from Bedrock.

Best regards, Miguel

5 hours ago

4 replies

Last reply 18 minutes ago

Show thread

Hide thread

Sascha Reiser

Dear Miguel,
thank you so much.

The PDF is small and valid.

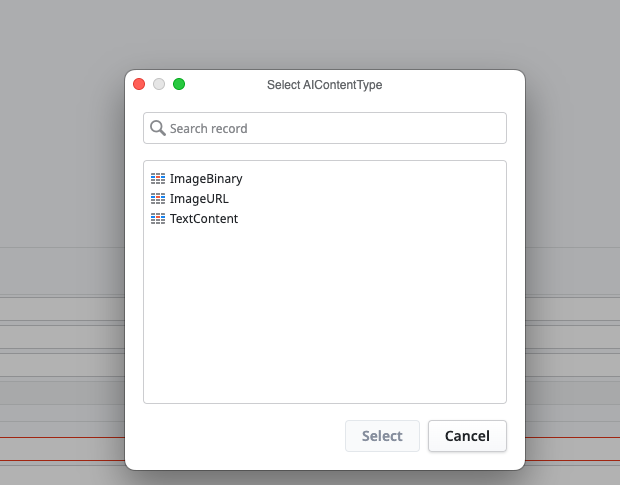

I have one big problem, there is no "Entities.AIContentType.DocumentBinary" (even in the official exercise). I have updated my ODC Studio (for Mac) to the latest version (1.6.10) already.

So I can only stay on "ImageBinary".

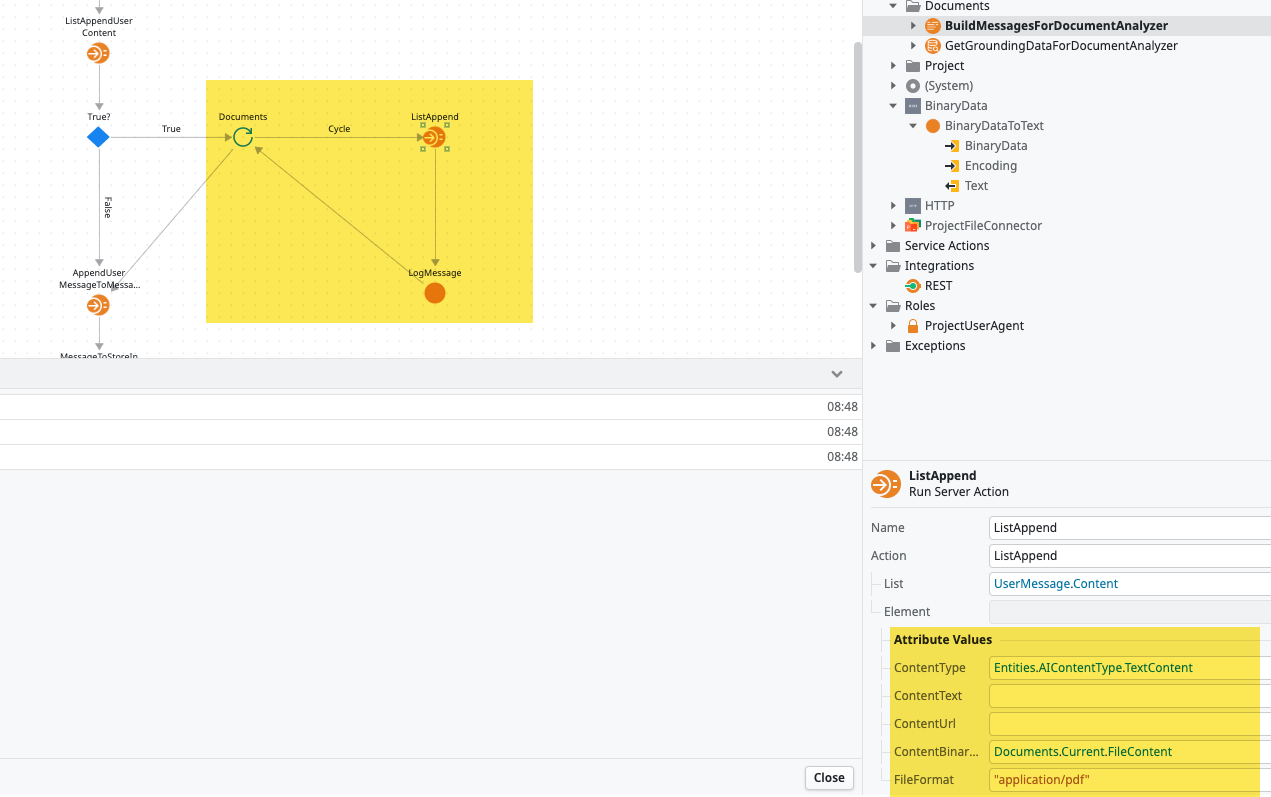

Changing the file type to "application/pdf" :

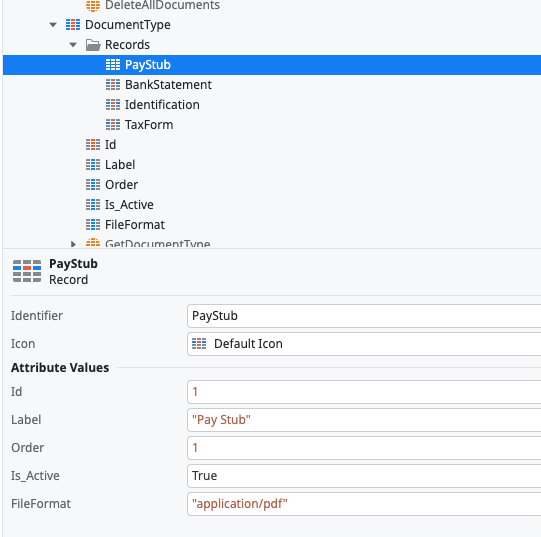

In the official course it's stated like this, so I tried it also:

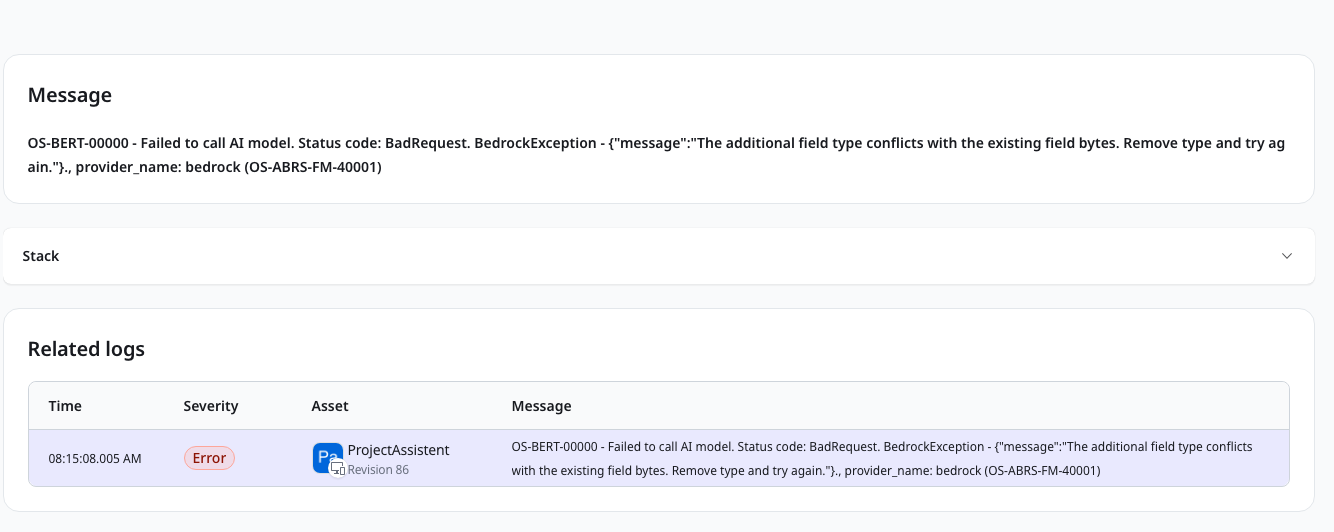

Well I think it's getting deeper but there is conflict:

Changing the file type to "pdf":

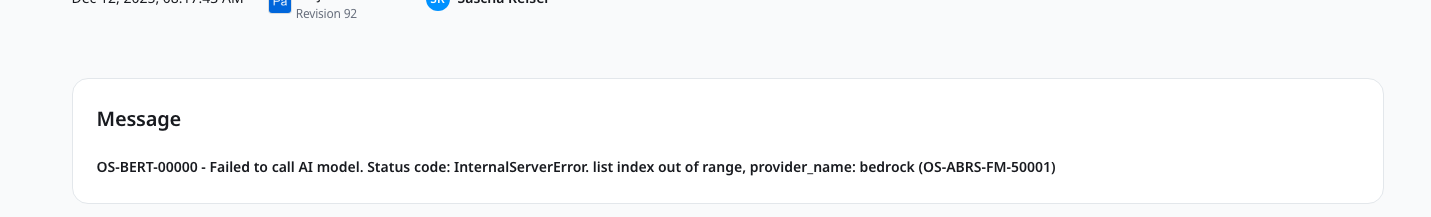

Same error like before:

Any suggestions?
Many thanks and best regards,

Sascha

4 hours ago

Sascha Reiser

Dear Miguel,

another question.

Is there any documentation about the content type
"DocumentBinary" ?

Many thanks and best regards,

Sascha

3 hours ago

Miguel Verdasca

Hi Sascha,

Thanks for the follow-up questions, happy to clarify.

1. About the missing DocumentBinary ContentType

You are correct: in ODC today, the only available binary-capable content type exposed to developers is:

AIContentType.ImageBinary

The training material still references DocumentBinary, but that value existed only in early internal builds of ODC and is not part of the public runtime anymore. This is why you cannot find it in Studio. So your observation is fully correct — the option simply does not exist in the current GA version.

What does this mean for PDFs?

PDFs can still be sent, but because Bedrock enforces strict validation of the payload metadata, you must ensure:

The file’s declared type matches the actual binary bytes, and
You do not include a conflicting or unnecessary FileFormat field.

If you set:

ContentType = ImageBinaryFileFormat = "application/pdf"

→ Bedrock sees two conflicting file-type definitions (one says “image data”, the other says “PDF”) → This triggers the error you’re getting:

"The additional field type conflicts with the existing field bytes"

So the conflict is expected, not a bug.

2. How to properly send a PDF in the current ODC version

Since ODC does not yet provide a dedicated “DocumentBinary” type, the correct approach (confirmed with OutSystems internally) is:

✔ Use ImageBinary,

✔ Remove FileFormat completely,

✔ Send only the binary, without additional metadata.

Bedrock will infer the type automatically from the binary header (%PDF-1.x), and ODC validation will accept the payload because there is no conflicting metadata.

This eliminates the conflict between content type and file bytes.

3. Is there documentation for “DocumentBinary”?

No — because DocumentBinary is not available in public ODC. Any documentation you saw in training material refers to an old internal build. OutSystems is expected to introduce a proper document-type classification in a future update, but it is not released yet.

Summary of the final working setup

Use this:

ContentType = Entities.AIContentType.ImageBinaryContentText = ""ContentUrl = ""ContentBinaryData = Documents.Current.FileContentFileFormat = (leave empty)

Avoid:

"application/pdf"
"pdf"
Any extra metadata fields

This stops Bedrock from rejecting the payload.

Best regards, Miguel

1 hour ago

Sascha Reiser

Replying to Miguel Verdasca's comment on 12 Dec 2025 10:28:42

Dear Miguel,
thank you very much once more :)

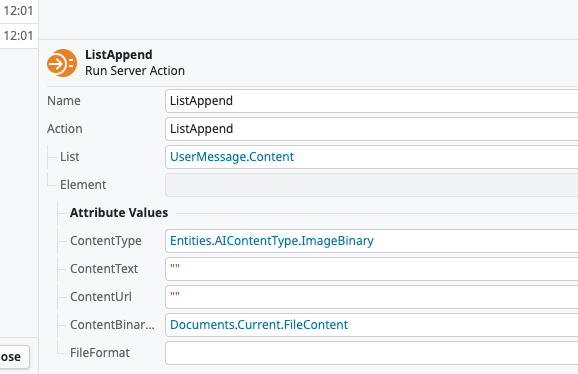

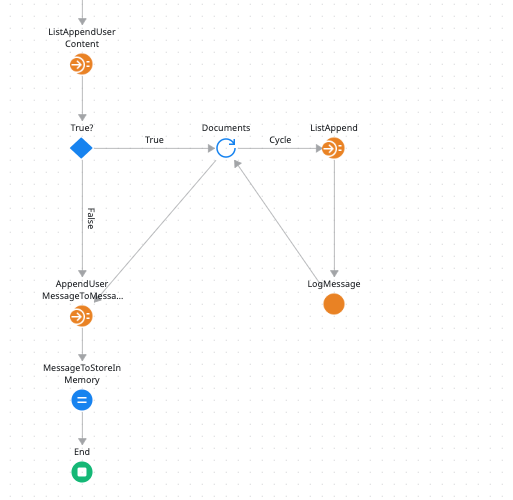

Now I am adding the documents like this:

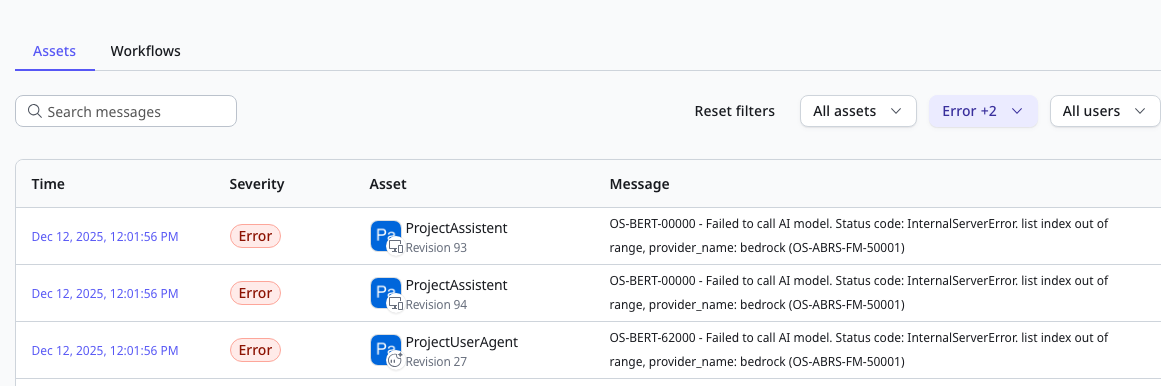

But it still crashed with the same logs like in the initial question.

What do you mean exactly without additional metadata?

Do I have to send the payload (pdf file) with a separate request and send the user prompt in another one? I can image that the LLM can connect the both request by the session id.
(Well, when I use the ChatGPT app this works)

Many thanks again!!!
Best regards,
Sascha

18 minutes ago
